S3C FLEX

Flexible Metal Conduit

S3C FLEX

Square locked, flexible metal conduit for cable & wire protective systems

Square locked, Flexible Metal Conduit for cable & wire protective systems in humid and dusty areas, and outdoor applications.

Material: Galvanized steel

Enquire this product

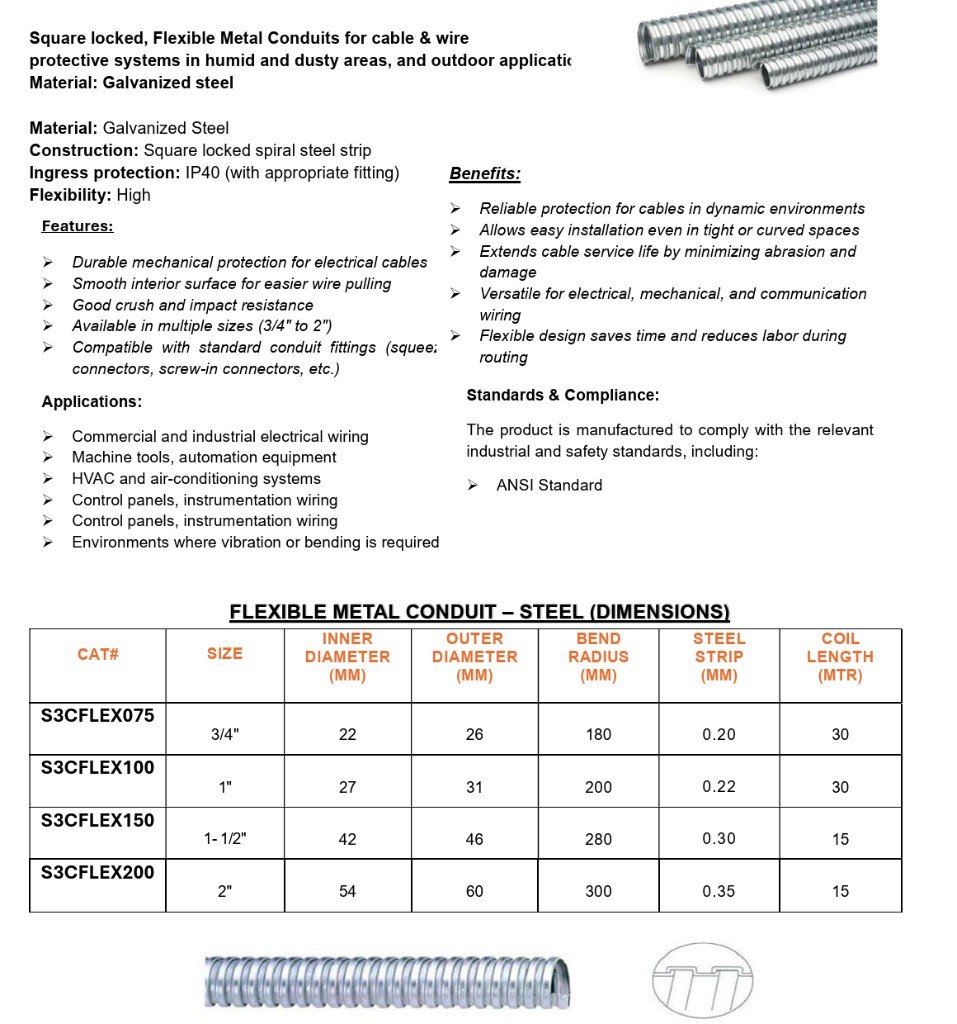

S3C FLEX flexible metal conduit

Technical Specifications

Material Galvanized Steel
Construction Square locked spiral steel strip
Ingress Protection IP40 (with appropriate fitting)
Flexibility High

Standards & Compliance

The product is manufactured to comply with the relevant industrial and safety standards, including:

  • ANSI Standard

Features

  • Durable mechanical protection for electrical cables
  • Smooth interior surface for easier wire pulling
  • Good crush and impact resistance
  • Available in multiple sizes (3/4" to 2")
  • Compatible with standard conduit fittings (squeeze connectors, screw-in connectors, etc.)

Applications

  • Commercial and industrial electrical wiring
  • Machine tools, automation equipment
  • HVAC and air-conditioning systems
  • Control panels, instrumentation wiring
  • Environments where vibration or bending is required

Benefits

  • Reliable protection for cables in dynamic environments
  • Allows easy installation even in tight or curved spaces
  • Extends cable service life by minimizing abrasion and damage
  • Versatile for electrical, mechanical, and communication wiring
  • Flexible design saves time and reduces labor during routing
S3C FLEX

Flexible Metal Conduit – Steel (Dimensions)

CAT# SIZE INNER DIAMETER (MM) OUTER DIAMETER (MM) BEND RADIUS (MM) STEEL STRIP (MM) COIL LENGTH (MTR)
S3CFLEX075 3/4" 22 26 180 0.20 30
S3CFLEX100 1" 27 31 200 0.22 30
S3CFLEX150 1-1/2" 42 46 280 0.30 15
S3CFLEX200 2" 54 60 300 0.35 15
